Computerized Corrugated Box Printing Machine Motorized Flexo Printing Slotting Machine

  • 1
  • 2

Model Number : SP-Q2

Brand Name : StarPack

Certification : CE Certificate, Patent Certificate

Place of Origin : Foshan,China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 3 Sets per Month

Delivery Time : 90-100 days

Packaging Details : Steel Base with Carton Box and Film Wrapping

Name : Computerized and Motorized High Speed Flexo Printing Slotting Machine

Automatic Type : Fully Automatic Type

Service : Video Technical Support, Online Support, All Necessary Documents, Quickly Wear-out Parts Supply And Etc.

Key Words : Carton Box Making Machine

Voltage : 220/380V Or Custom

Application : For All Kind Of Carton Boxes Making

Warranty : 1 Years Warranty

Contact Now

Computerized and Motorized High Speed Flexo Printing Slotting Machine for Making all kinds of Corrugated Cartons Your trusted Chinese Parnter


SUMMARY OF MACHINE

  1. Fulfill the processes automatically i.e. paper feeding, printing (1~4 colors), scoring, trimming, slotting, angle cutting (hole punching) or die cutting, stacking
  2. Designed according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.
  3. All of drive rollers are made of high-quality steel, hard chrome plated the surface with grinded.
  4. The drive gear adopts good quality steel after heat treatment and gear shaving process, all of main drive gear equipped with cross slide block to make sure transmission accuracy.
  5. The main drive roller adopts keyless connect, decrease the connection gap, ensure printing precision.
  6. Engineer oil automatic balance device, keep the oil level equal in each unit.
  7. Phase adopts electric digital adjusting with “automatic zero return” and “memories” function
  8. It adopts roller type lead edge feeding or push kick type feeding system.
  9. The main motor is frequency motor with VDF, work stable.
  10. Available to match with Automatic Feeder or Semi-automatic Type for saving Labor cost.
  11. Available for match with Vibrator and Counter Stacker for easy cardboard stacking.
  12. Independent Line Speed Control optional for Die cutter.
  13. Ceramic Anilox Roller and Chambered Doctor Blade Optional for Good quality printing, especially for small letter and lines.

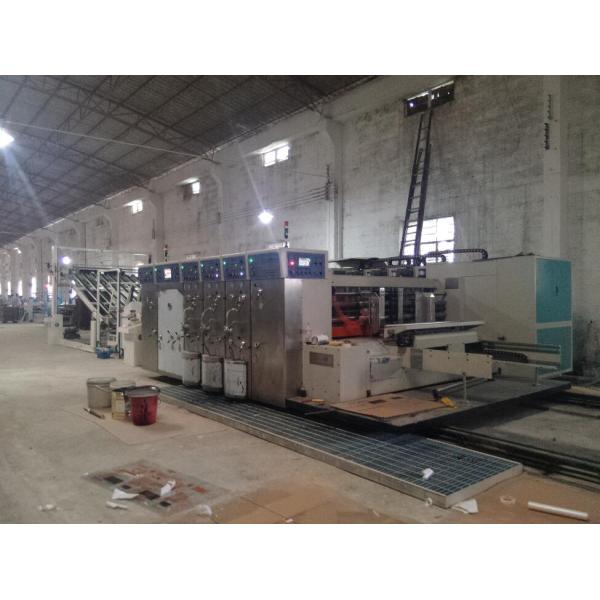

The Photo of Machine
Computerized Corrugated Box Printing Machine Motorized Flexo Printing Slotting Machine



OVERVIEW

Brand Name StarPack
Automatic Level Slotting Unit Computerized, Register & Transverse Computerized.
Feeding Unit Taiwan Lead Edge Feeder, 3 years Warranty
Printing Unit Roll Guide Transfer
Slotting Unit 6 shafts, Pre-creasing, Creasing, Slotting
Die-cutting Unit With Automatic Grinding System
Stacker Hydraulic Stacker, Counter Stacker Optional
Vibrator Pneumatic Vibrator
Doctor Blade Optional
Ceramic Roller Optional
Servo Control Optional
Service Factory dispatch Engineer or Local Representative dispatch engineers.
Delivery Time 90-120 days
Payment L/C, T/T
Key Words Rotary Die Cutting Equipment




PROCESS & JOBS
Computerized Corrugated Box Printing Machine Motorized Flexo Printing Slotting Machine

Computerized Corrugated Box Printing Machine Motorized Flexo Printing Slotting Machine



THE MAIN PARAMETERS:
Computerized Corrugated Box Printing Machine Motorized Flexo Printing Slotting Machine

Model SP-Q2 SP-Q2 SP-Q2
Size 0920 1224 1628
Max. Sheet Size (FxA) 890x2000 1190x2400 1600x2800
Skip Feed Size (FxA) 1200x2000 1400x2400 1800x2800
Min. Sheet Size (FxA) 280x700 350x720 450x850
Max. Printing Area (FxA) 890x1960 1190x2360 1600x2760
Top Speed (Sheet/min) 300 250 180
Economic Speed (sheet/min) 150-250 120-220 100-160
Min. Slotting Space-Reverse Knife (BxCxBxC) 270x100x270x100 270x100x270x100 320x120x320x120
Min. Slotting Space-Normal Knife (BxCxBxC) 160x160x160x160 160x160x160x160 160x160x160x160
Max. Slot Depth Size 250 320 450
Min. Box Height Size 110 110 160
Max. Die-Cutting Area 850x1950 1150x2350 1530x2750
Sheet Thickness 1.5-11 1.5-11 1.5-11
Thickness of Printing Plate 7.2 7.2 7.2
Main Working Power(KW) 4 Colors Slotter Die-cutter 90/69/47 105/76/54 126.5/95.5/65.5
Stacker + Vibrator 3+10 3+10 3+10
Total Power(KW) 4 Colors Slotter Die-cutter 105/81.5/59.5 120/88.5/66.5 141/108/78
Stacker + Vibrator 3+10 3+10 3+10
Dimension (mm) 4 Colors Slotter Die-cutter 6600x4950x2550 9900x5350x2650 9900x5750x2750
Stacker 6500x3500x3000 6500x3970x3000 6500x4440x3000
Vibrator 3200x3300x1100 3200x3700x1100 3200x4150x1100
Mark: 0820 0924 1220 1226 1228 1424 1426 1630 1632 2036 can be customized.



OPTIONAL ITERMS AS BELLOW

Ceramic Rollers
Chambered Doctor Blade
Dual-shaft Slotting Unit
Vibrator
Counter Stacker
Inline Folder Gluer
Pre-feeder
