3 Ply 5 Ply 7 Ply Corrugated Box Making Machine 300 Sheets/Min With Touch Screen

Name: 3 Ply 5 Ply 7 Ply Corrugated Box Making Machine 300 SheetsMin With Touch Screen
Brand: Toprint
Price: 1 USD

China 3 Ply 5 Ply 7 Ply Corrugated Box Making Machine 300 Sheets/Min With Touch Screen wholesale

Brand Name : Toprint

Model Number : TP-CR-1224

Certification : CE Certificate, Patent Certificate

Place of Origin : Guangdong, China

MOQ : 1 Set

Price : Negotiation

Supply Ability : 3 Sets per Month

Delivery Time : 60-90days

Packaging Details : Steel Base with Carton Box with Film Wrap

Printing Color : Multi colors

Max. Production Speed : 300sheets/min

Touch Screen Control : Yes

Automatic System Control : Yes with touch screen

Oversea Sales Service : Dispatch engineer for install and training

Corrugated Box : 3, 5, 7 ply

Transport Package : Standard export package

Original : Foshan, China

Contact Now

High Speed Hot Sale Corrugated Box Making Machine Box Folder Gluer Machine Available For Fast Delivery within 60-80days, save your time and save your cost.

GENERAL SPECIFICATIONS

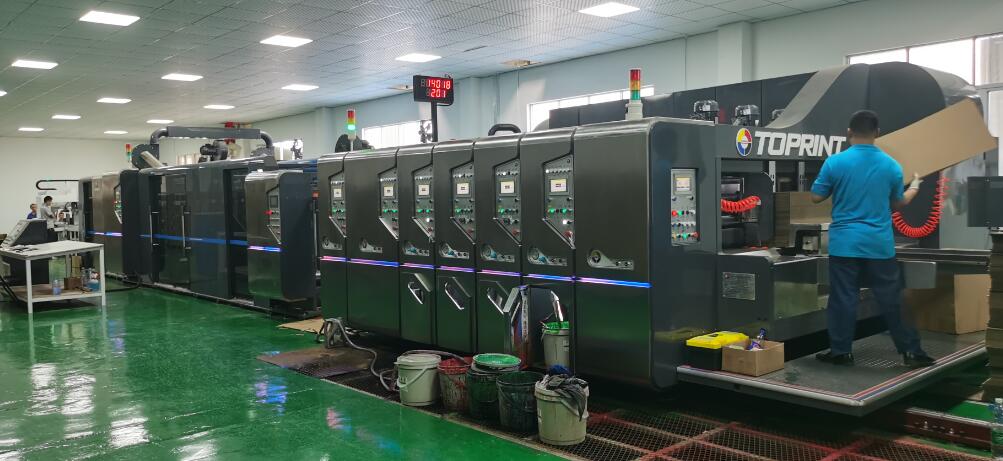

TP-CR Series High speed flexo printer slotter inline folder gluer (casemaker) provides a complete carton boxes producing solutions.
The whole line only needs 3-4 people for operation, fast order change and set up, easy to operate and maintain, central control adopts independent industry computer with keyboard, ready to connect with ERP system.
The machine is designed and made to high quality and safety standard, stable and consistency high printing quality maximize the production efficiency.
With international design philosophy and CE certified,with industrial computer and touch screen for fast set up and order change, remote diagnose for fast trouble shooting, Movable units, lead edge feeding system vacuum sheet transfer to suitable for all kinds of cardboard.

MAIN FEATURES

3 Ply 5 Ply 7 Ply Corrugated Box Making Machine 300 Sheets/Min With Touch Screen

Parameters Model		0920	1224
Max.Sheet Size (FxA)		890x2000	1190x2400
Skip Feed Size (FxA)		1200x2000	1400x2400
Min.Sheet Size (FxA)		280x780	380x780
Max.Printing Area (FxA)		890x2360	1190x2360
Top Speed (Sheet/min)		300	250
Economic Speed (sheet/min)		120-250	120-200
Max. Slot Depth Size		300	300
Min. Box Height Size (E)		110	110
Max. Die-Cutting Area (FxA)		850x2350	1150x2350
(Max. size) (B+C)		≤980 mm	≤1180 mm
(Min. size) (B+C)		≥370mm	≥380mm
(Max. size) (B)		880mm	1030mm
(Min. size) (B)		270mm	280mm
(Max. size) (C)		710mm	900mm
(Min. size) (C)		100mm	100mm
(Glue Flap Width) (D)		≤40mm	≤40mm
Sheet Thickness		1.5-11	1.5-11
Printing Plate Thickness (Sponge + Film + Plate)		7.2	7.2
Main Working Power (KW)	Flexo Printer + Inline	70+40	70+40
Total Power(KW)	Flexo Printer + Inline	100+51	100+51
Dimension (mm)	Flexo Printer	10500x5000x2530	10500x5200x2630
Dimension (mm)	Inline Folder Gluer	14300x2500x2650	14300x2600x2650
Frame Thickness	Flexo Printer	60mm	60mm
Frame Thickness	Folder Gluer	40mm	40mm

MAIN FEATURES

3 Ply 5 Ply 7 Ply Corrugated Box Making Machine 300 Sheets/Min With Touch Screen

The super solution for carton box making, with an intelligent production management system using an industrial computer match with friendly HMI touch screen, remote control to support customer online, and ready to connect ERP.
The register of each units is servo control, more precision and more accurate.
The feeder unit, lead edge feeder with motorized control of side baffles. Extended dust removing system with 3-4 sets of upper blower and anti-static brushes, reduce the down time for printing plate cleaning.
The printer unit, vacuum transfer system. Quick-lock plate mounting system. Roll-to roll or doctor blade (chamber or single) inking system.
Auto high-pressure water spraying system for high efficiency ink washing. Scientific design of ink recycling system and easy maintenance.
The slotting boss moves along linear guides driven by lead screws for more flexible and precise movement, can chose single shaft slotting or dual shaft slotting.
Frequency control of independent motor of anvil cylinder for line speed compensation, with micro grinding system for anvil cover.
Automatic adjustment according to the thickness of the paperboard, ensure transportation of paperboard.
Side belts and guiding wheel of folder gluer use 4 independent motor to make sure more accurate folding and conveying.
Counter ejector unit: Top loading collector. Max 25 bundles per minute
Independent servo motor system, precise control of the number of cartons per bundle, and ensure that its mechanical motion is synchronized with the machine speed.
USA VALCO gluing system

For more information, please feel free to contact with us.
